Product Description

Elegant Screen Solution is an all-in-one, large-format LED display engineered to deliver a fully integrated and user-friendly smart display experience. It seamlessly combines advanced processing, built-in audio, and an Android operating system with Wi-Fi connectivity, enabling effortless IoT integration and intuitive control via an included remote.

The system supports multiple connectivity options, including HDMI, USB, and wireless screen sharing through built-in AirPlay, allowing users to present and collaborate with ease. This makes it an ideal solution for conference rooms, boardrooms, educational settings, trade shows, and corporate environments.

Available in both 2K and 4K native resolutions and a range of sizes, Elegant Screen Solution provides flexibility to meet diverse application needs. It incorporates high-contrast LED technology to deliver vivid, high-quality visuals while ensuring enhanced durability and reduced maintenance requirements.

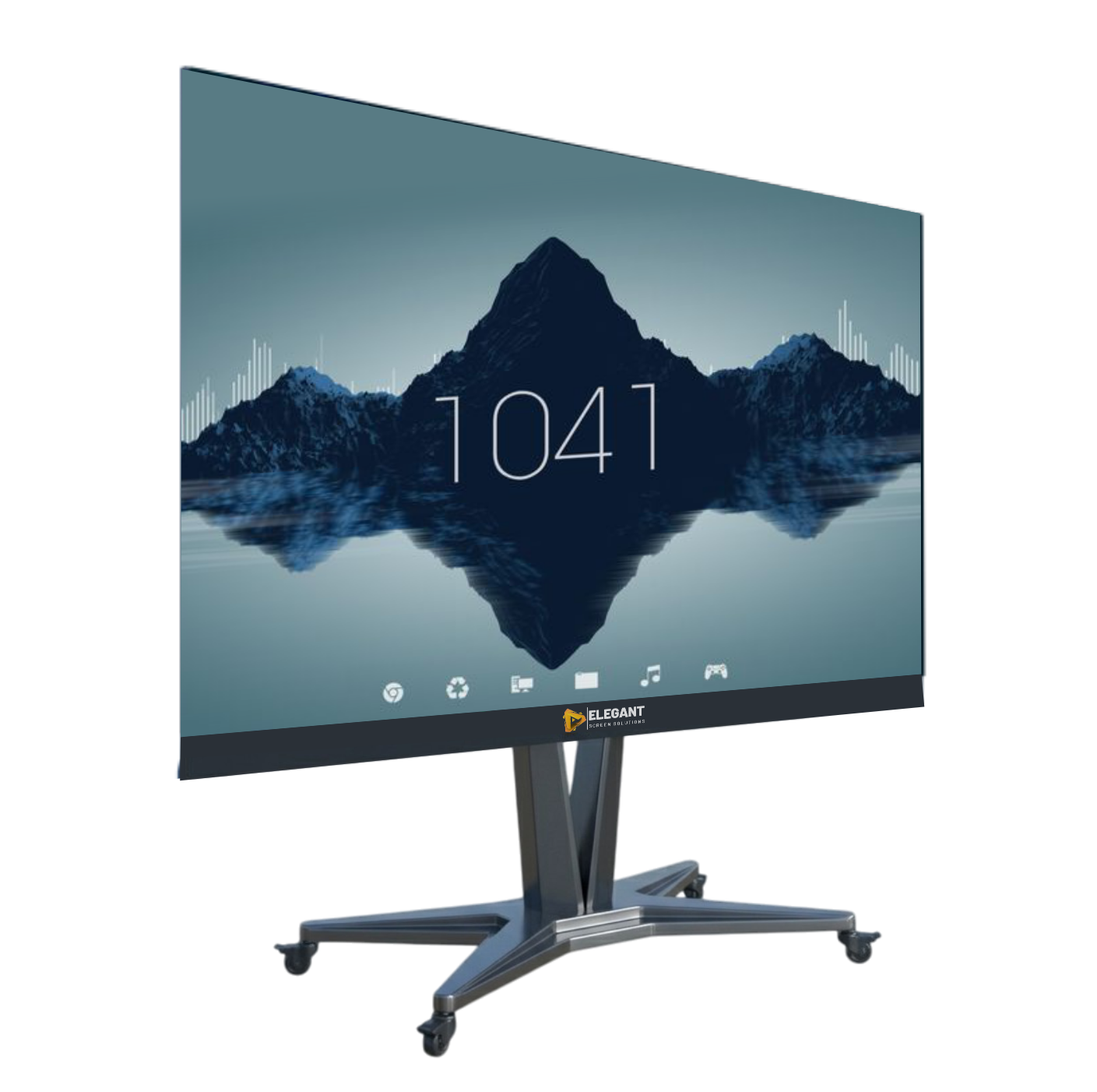

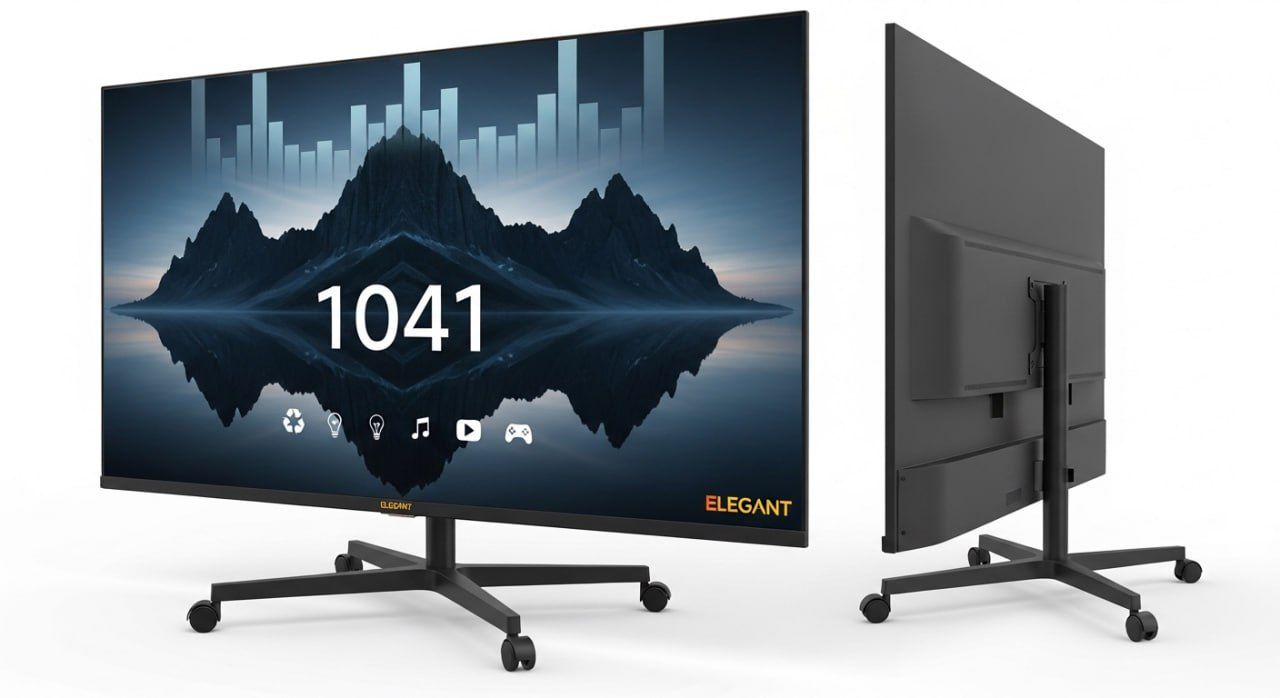

With a sleek, modern design featuring an ultra-thin 25mm profile, it also offers an optional rolling base stand for convenient mobility and flexible, non-permanent installations.

Standardized Sizes

Size : 135″
Resolution: 2K (1920 × 1080) | 4K (3840 × 2160)

Elegant Screen Solution is available in two standardized sizes, each designed with a 16:9 aspect ratio to ensure optimal visual balance and compatibility with modern content formats. Every display is engineered to deliver true native pixel-to-pixel performance in either 2K HD or 4K UHD resolution, providing exceptional image clarity, sharp detail, and uncompromised visual quality across all applications.

Use Applications

• Video Conferencing
• Conference & Board Rooms
• Classrooms
• Presentation Environments
• Multi-Purpose Spaces
• Training & Development Centers
• Lecture Halls & Auditoriums
• Corporate Collaboration Spaces
• Huddle Rooms
• Control Rooms & Command Centers
• Trade Shows & Exhibition Booths
• Retail Showrooms & Experience Centers
• Museums & Art Galleries
• Hospitality Venues (Hotels, Event Spaces)
• Healthcare Facilities (Training & Patient Education)
• Government & Public Sector Facilities
• Co-working Spaces

Component

Pixel Pitch: 1.56mm
LED Type: SMD GOB (Standare) / COB FlipChip (Optional)
Screen Resolution: 1920×1080
Brightness: 600~ NITS
Contrast Ratio: 10,000.
Viewing Angle: 160° H | 160° V
Refresh Rate: 3,8403 Hz
Grayscale: 16-Bit+
Dimensions [Screen Only]: 118.1 x 66 x 1.58″
Dimensions [w/ Rolling Base]: 118.1 × 88 × 30″
Weight (Screen Only): 297 Ibs (135 kg)
Weight (w/Rolling Base): 326 Ibs (147 kg)
Serviceability: Front
Mounting Options: Floor Standing (Rolling Base) / Wall-Mount
Ingress Protection Rating: IP20
Operating System: NovaStar ME150 + Android OS
Input Interfaces: 5 x HDMI-IN,3 x USB-A, 1x USB-C
Out Interfaces: 1 x HDMI-OUT, 1x Opt-Audio
Control Interface: LAN, WiFi, Bluetooth, RS252, RS485, RJ45
Supported Formats: MP4, AVI, WMV, WAV, Etc.
Power Connection: 3-Prong 20A Edison
Voltage: 120-240v
Average Power Consumption: 790w
Max Power Consumption: 2,150w
Ingress Protection Rating: IP20 (Indoor Use Only)
Commercial Use Only – Not Rated for Residential Applications
Certifications: ETL, FCC, CE, ROHS, EMC
Warranty: 2-Year Limited (Parts Only)
Screen warranty: 5 years Limited
