Product Description

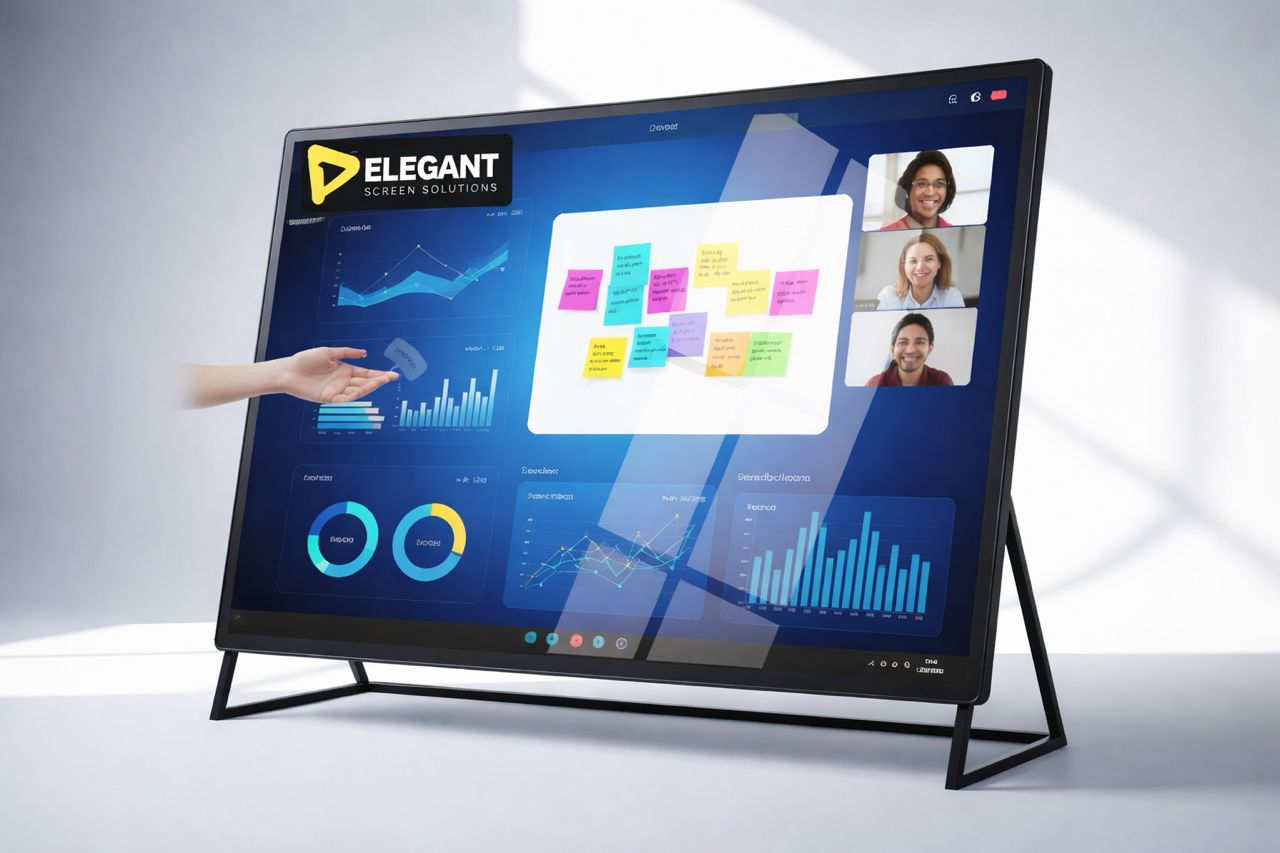

Elegant Screen Solution is a premium, all-in-one large-format LED display engineered to deliver a fully integrated and intuitive smart display experience. It combines advanced processing capabilities, integrated high-quality audio, and an Android operating system with built-in Wi-Fi connectivity, enabling seamless IoT integration and simplified control through an included remote interface.

The platform supports a wide range of connectivity options, including HDMI, USB, and wireless screen sharing via integrated AirPlay, allowing users to connect, present, and collaborate effortlessly across devices. This versatility makes it ideally suited for conference rooms, executive boardrooms, educational institutions, trade exhibitions, and corporate environments.

Offered in both native 2K and 4K resolutions and multiple size configurations, Elegant Screen Solution provides scalable flexibility to meet diverse application requirements. Its high-contrast LED technology ensures exceptional brightness, color accuracy, and image clarity, while also delivering enhanced durability and reduced long-term maintenance.

Designed with a refined, ultra-slim 25mm profile, the display complements modern architectural spaces. An optional rolling base stand further enhances deployment flexibility, enabling easy mobility and supporting both permanent and non-permanent installations.

Standardized Size

Size : 163″
Resolution: 2K (1920 × 1080) | 4K (3840 × 2160)

Elegant Screen Solution is available in two standardized sizes, each designed with a 16:9 aspect ratio to ensure optimal visual balance and compatibility with modern content formats. Every display is engineered to deliver true native pixel-to-pixel performance in either 2K HD or 4K UHD resolution, providing exceptional image clarity, sharp detail, and uncompromising visual quality across all applications.

Use Applications

• Video Conferencing
• Conference & Board Rooms
• Classrooms
• Presentation Environments
• Multi-Purpose Spaces
• Training & Development Centers
• Lecture Halls & Auditoriums
• Corporate Collaboration Spaces
• Huddle Rooms
• Control Rooms & Command Centers
• Trade Shows & Exhibition Booths
• Retail Showrooms & Experience Centers
• Museums & Art Galleries
• Hospitality Venues (Hotels, Event Spaces)
• Healthcare Facilities (Training & Patient Education)
• Government & Public Sector Facilities
• Co-working Spaces

Component

Pixel Pitch: 1.56mm
LED Type: SMD GOB (Standare) / COB FlipChip (Optional)
Screen Resolution: 1920×1080
Brightness: 600~ NITS
Contrast Ratio: 10,000.
Viewing Angle: 160° H | 160° V
Refresh Rate: 3,8403 Hz
Grayscale: 16-Bit+
Dimensions [Screen Only]: 1417 x 79 x 1.58″
Dimensions [w/ Rolling Base]: 1417 × 112 × 30″
Weight (Screen Only): 471 Ibs (213 kg)
Weight (w/Rolling Base): 498 Ibs (225 kg)
Serviceability: Front
Mounting Options: Floor Standing (Rolling Base) / Wall-Mount
Ingress Protection Rating: IP20
Operating System: NovaStar ME150 + Android OS
Input Interfaces: 5 x HDMI-IN,3 x USB-A, 1x USB-C
Out Interfaces: 1 x HDMI-OUT, 1x Opt-Audio
Control Interface: LAN, WiFi, Bluetooth, RS252, RS485, RJ45
Supported Formats: MP4, AVI, WMV, WAV, Etc.
Power Connection: 3-Prong 20A Edison
Voltage: 120-240v
Average Power Consumption: 850w
Max Power Consumption: 2,220w
Ingress Protection Rating: IP20 (Indoor Use Only)
Commercial Use Only – Not Rated for Residential Applications
Certifications: ETL, FCC, CE, ROHS, EMC
Warranty: 2-Year Limited (Parts Only)
Screen warranty: 5 years Limited
