Product Description

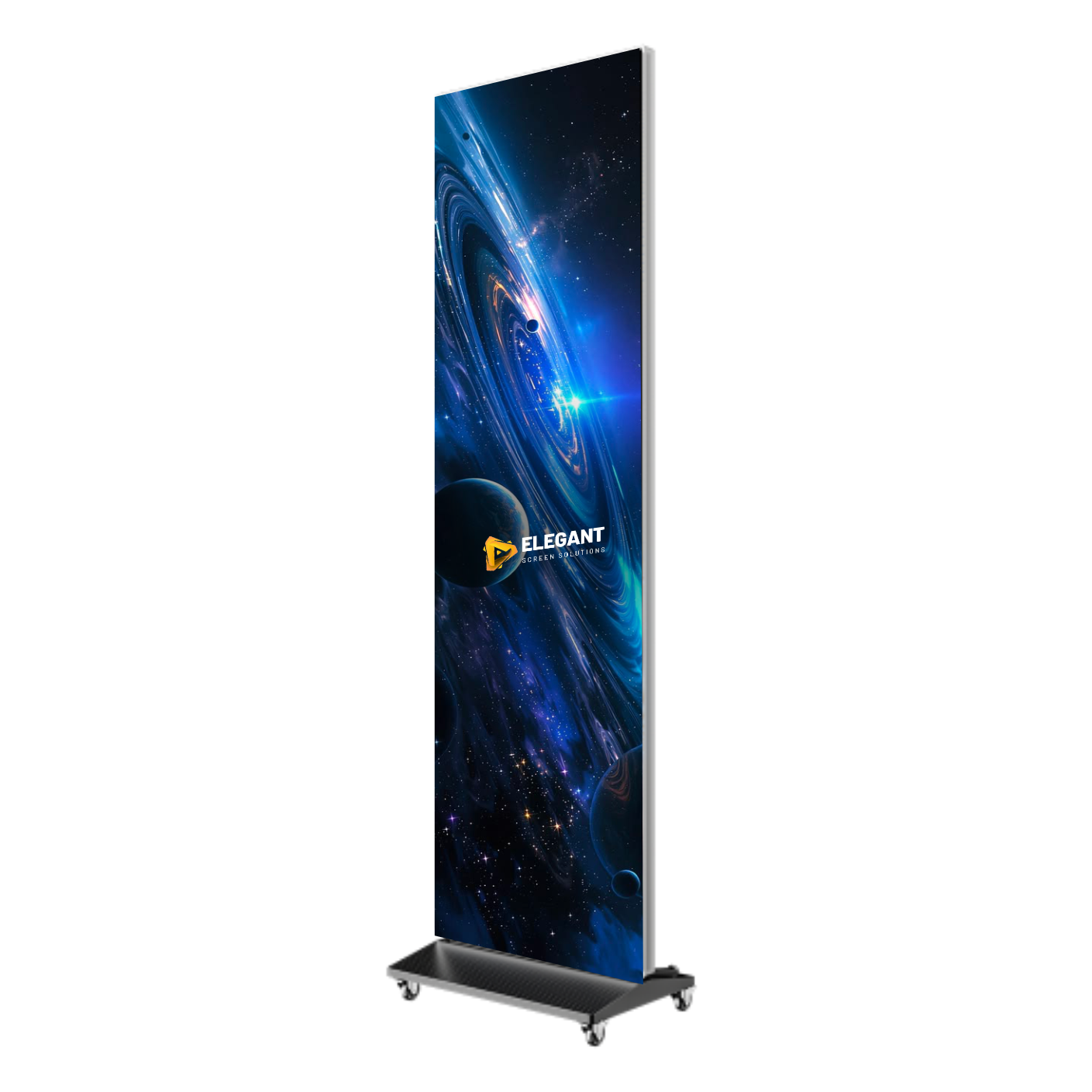

The Elegant Screen Solution digital poster series is a highly versatile, all-in-one LED digital poster display engineered for dynamic advertising and visual communication. Designed with precision hardware, it delivers exceptional ease of use, deployment flexibility, and reliable performance across a wide range of environments.

Standing at nearly seven feet tall, the display features fine pixel pitch technology to ensure sharp, detailed imagery and superior clarity, even at close viewing distances. It incorporates advanced GOB (Glue-on-Board) pixel protection, enhancing durability while significantly reducing maintenance requirements.

An integrated media player with built-in Wi-Fi enables seamless, app-based content management and playback, while HDMI and USB inputs provide additional connectivity without the need for external processing equipment.

For scalable display applications, multiple units can be linked—supporting configurations of up to eight screens—to create a seamless, zero-bezel, true HD video wall with minimal setup and a compact footprint.

Standardized Size

Size : 2.5mm

The system also includes a built-in folding kickstand and supports multiple mounting options, including rolling base stands, wall mounts, and ceiling brackets. This ensures maximum installation flexibility and efficient setup, even in environments where traditional LED display solutions may be impractical.

Use Applications

• Retail Stores & Shopping Malls
• Storefront Windows & Point-of-Sale Displays
• Airports & Transportation Hubs
• Train & Bus Stations
• Hotels & Hospitality Venues
• Restaurants, Cafés & Quick-Service Chains
• Corporate Lobbies & Reception Areas
• Office Buildings & Elevators
• Trade Shows & Exhibition Booths
• Convention Centers
• Event Venues & Arenas
• Movie Theaters & Entertainment Complexes
• Casinos & Gaming Venues
• Museums & Art Galleries
• Healthcare Facilities & Waiting Areas
• Fitness Centers & Gyms

COMPONENT

Pixel Pitch: 25mm
LED Type: SMDIS15 GOB
Unit Resolution: 240 810
Brightness: 900~ NITS
Contrast Ratio: 6,000l
View Angle: 140 H/140 V
Refresh Rate: 3,840≥ Hz
Grayscale: 14-Bit+
Materiat Die-Cast: Aluminum
Dimensions: 236x79x1.2″
w/ Rolling Base: 23.6x84Sx27
Weight (Screen Only): 859 Ibs (39 kg)
Weight (w/ Rolling Base): 114 Ibs (56 kg)
Servicesbilig: Front/Rear
Mounting Options: Floor Standing (Kickstand/Rolling Base) | Wall-Mount | Calling Mount
Max Unit Linking: 8 Units
Ingress Protection Rating: 1P30
Operating System: Android
On-Board Storage Capacity: 16GB
Video Interface: HDMI-IN, HDMI-OUT, 2 x USB-2.0
Control Interface: LAN, WIFi, AP Local Network
Supported Formats: MP4, AVI, WMV, WAV, Etc.
Power Connection: IEC IN
Signal Connection: Internal | R345
Voltage: 120-240v
Average Power: 155w
Max Power: 520w
Ingress Protection Rating: IP30 (Indoor Use Only)
Certifications: ETL, FCC, CE, ROHS, EMC
Warranty: 3-Year Limited
